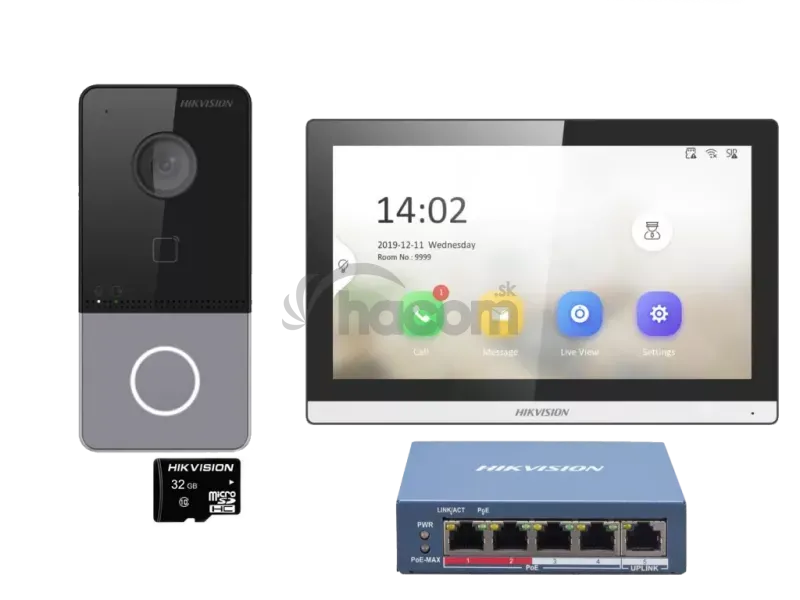

Hikvision DS-KIS607-S IP kit DS-KV6113-PE1(C), DS-KH6350-WTE1, 4-port PoE switch, SD IP-PoE video intercom kit, 1x call button, surface mount, 7-inch Wi-Fi touchscreen monitor + 5-port PoE switch
Video intercom kit - IP & WiFi Technology | PoE Switch - Board and monitor | Allows up to 16 monitors more - MF Reader | PoE - Mobile App P2P (activation from wizard monitor) - Surface mounting | IP65
Kit consisting of: DS-KV6113-WPE1(C) outdoor surface video door entry panel with 2 Mpx HD camera, DS-KH6350-WTE1 indoor WiFi monitor with 7" TFT LCD display and narrow frame and standard PoE switch
MF Card Reader
Monitoring through iVMS-4200 software or Hik-Connect mobile app
Allows to add up to 16 additional monitors as extensions
The Hikvision DS-KIS603-S-P(C) IP video intercom kit is a complete system designed for single-family homes or villas. It includes a door station, a touchscreen indoor monitor, and a PoE switch to simplify installation.
Features:
Mobile app control: The Hik-Connect app allows you to view the camera, receive calls, talk to visitors, and view event history from your smartphone.
Plug and Play Installation: The system is designed for easy and cost-effective installation.
Expandability: The system allows you to add up to 16 additional monitors or IP cameras for comprehensive surveillance.
Simplified Power Supply: The included PoE switch provides power and network connectivity to both units with a single Ethernet cable.
DS-KV6113-WPE1(C) Door Station (External Door Station):
Camera:
- Resolution: 2 megapixel HD.
- Night Vision: IR low-light mode allows clear vision up to 3 meters in the dark.
- Viewing angle: 131° horizontal and 78° vertical, providing a wide field of vision.
Audio:
- Communication: Two-way audio with noise suppression and echo cancellation for clear conversations.
- Microphone: Built-in omnidirectional microphone.
Speaker: Built-in for audio playback.
Features:
- Motion detection.
- Card reader: Built-in 13.56 MHz Mifare card for access control.
- Call button: One-button call initiation.
Connectivity:
- Wired network: 10/100 Mbps Ethernet.
- Wireless network: Built-in Wi-Fi 802.11 b/g/n.
Physical and Installation Specifications:
- Protection Level: IP65 certified, dust and water resistant.
- Installation: Surface mount.
- Power Supply: Standard PoE (IEEE802.3af) or 12V DC.
- Dimensions: 138 mm × 65 mm × 27 mm.
Moniteur intérieur DS-KH6320-WTE1 :
Display:
- Screen: 7-inch TFT color capacitive touchscreen.
- Resolution: 1024 x 600.
Audio:
- Communication: Two-way audio with built-in microphone and speaker.
Features:
- Mobile App: Compatible with the Hik-Connect app for remote control.
- Storage: TF card slot up to 32GB for image capture and voice messages.
- Alarm Inputs: 8 inputs for connecting other detectors.
Connectivity:
- Wired Network: Self-adaptive 10/100 Mbps Ethernet.
- Wireless Network: Wi-Fi 802.11 b/g/n.
Physical and Installation Specifications:
- Power Supply: PoE or 12V DC.
- Dimensions: 200 mm × 140 mm × 15.1 mm.
5-Port PoE Switch:
- Connectivity: Allows devices to be powered via a single Ethernet cable, simplifying installation.
|
Intercom Specifactions
|
|
|---|---|
| Intercom Technology | IP-Standard POE |
| Indoor Unit | Video 7.0" |
|
General specifications
|
|
| Mounting Type | Surface Mount |
